ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TBA 1-1222E

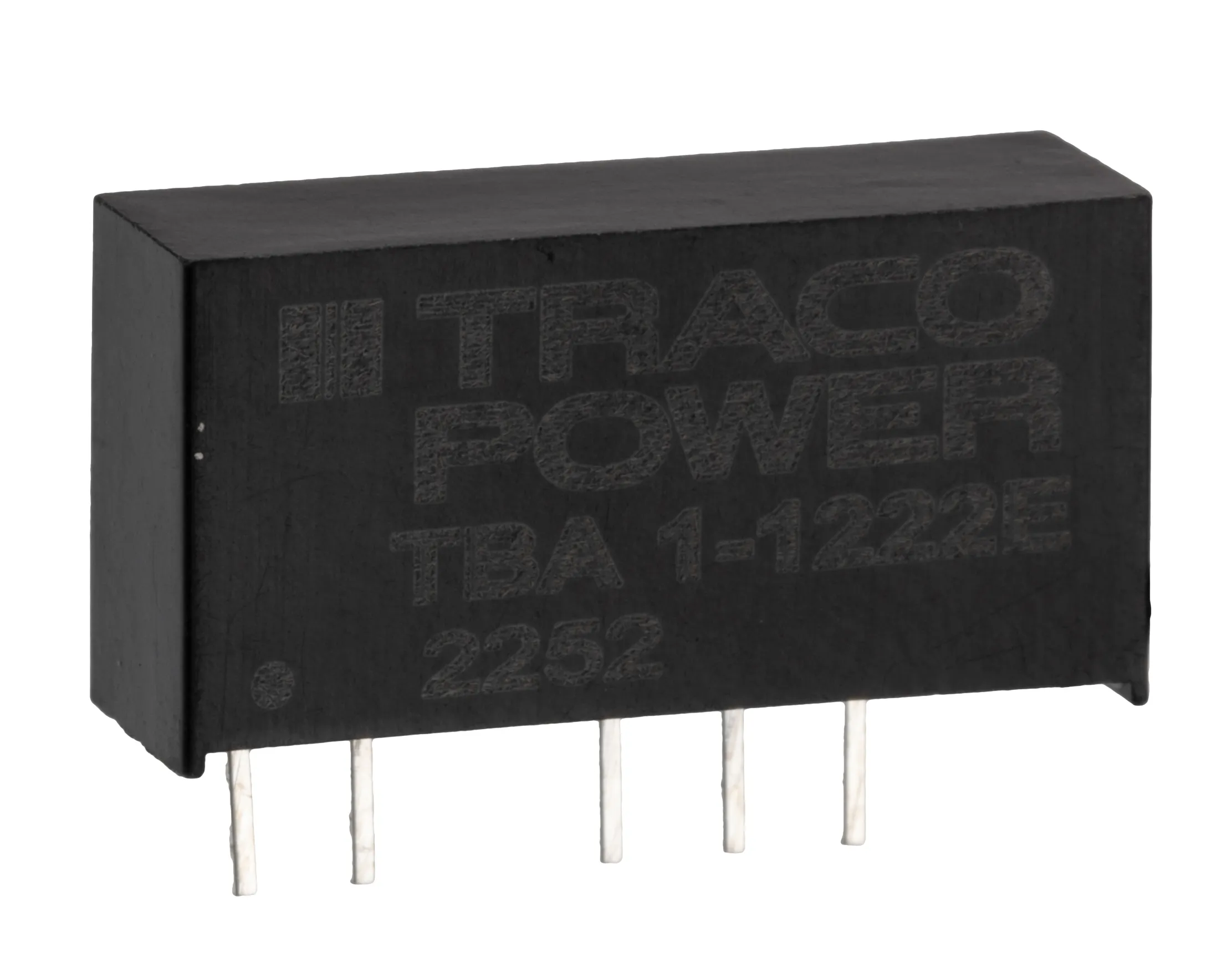

TRACOPOWER TBA 1-1222E
- Output Voltage 1
- 12V dc
- Product Type
- DC/DC Converter
- Minimum Input Voltage
- 10.8V
- Maximum Input Voltage
- 13.2V dc
- Output Current 1
- 41mA
- Output Current 2
- 41mA
- Mount Type
- PCB
- Output Voltage 2
- -12V dc
- MTBF
- 2000000h
- Number of Outputs
- 2
- Isolation Voltage
- 1.5kV dc
- Maximum Output Power
- 1W
- Package Type
- SIP-7
- Series
- TBA 1E
- Width
- 6mm
- Length
- 19.5mm
- Depth
- 9.55mm
- Standards/Approvals
- No
- Minimum Operating Temperature
- -40°C
- Efficiency
- 0.8
- Maximum Operating Temperature
- 85°C
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1873992&DisplayLogo=False
