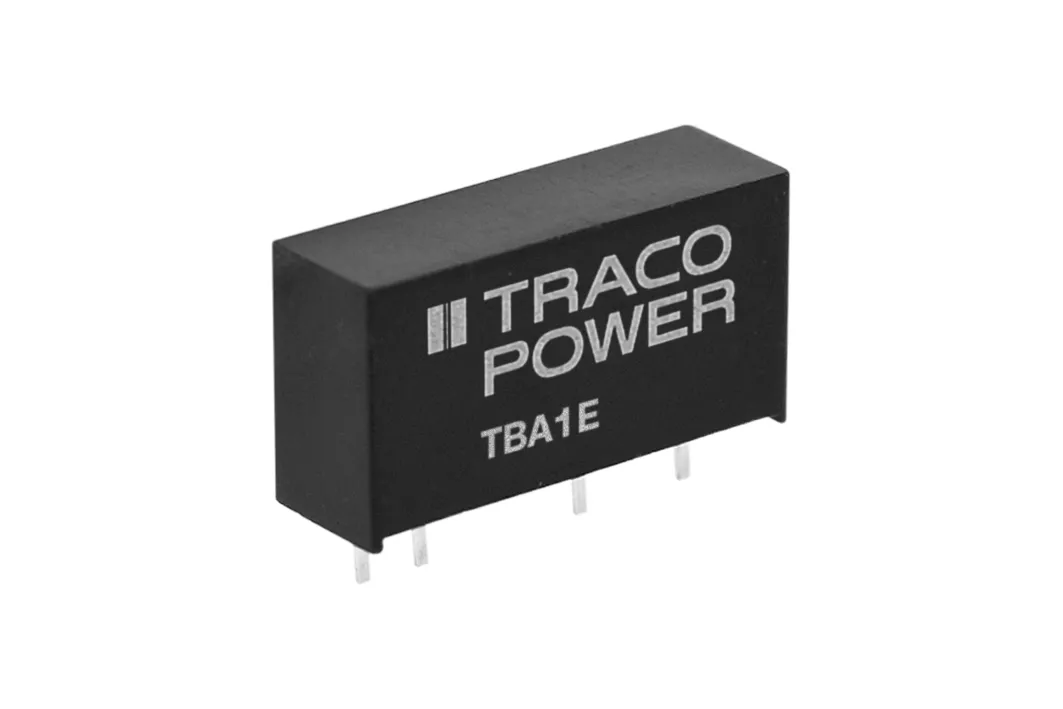

TRACOPOWER TBA 1-2412E TBA 1E DC/DC Converter, 12V dc/ 84 mA, 26.4V dc Input, 21.6V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp

ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TBA 1-2412E

TRACOPOWER TBA 1-2412E

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

21.6V

Maximum Input Voltage

26.4V dc

Output Current 1

84mA

Mount Type

PCB

Number of Outputs

1

MTBF

2000000h

Isolation Voltage

1.5kV dc

Package Type

SIP-7

Maximum Output Power

1W

Series

TBA 1E

Width

6mm

Standards/Approvals

No

Depth

9.55mm

Length

19.5mm

Maximum Operating Temperature

85°C

Efficiency

0.82

Minimum Operating Temperature

-40°C

3D Model

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1873995&DisplayLogo=False
