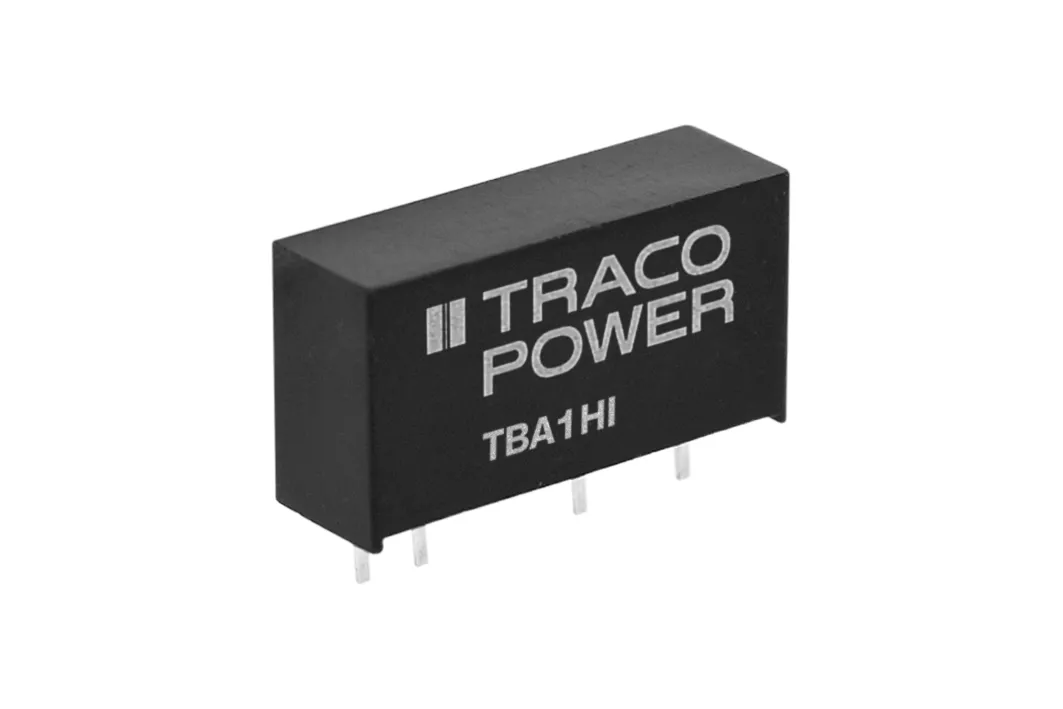

TRACOPOWER TBA 1-2421HI TBA 1HI DC/DC Converter, 5V dc/ 100 mA, 26.4V dc Input, 21.6V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp

ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TBA 1-2421HI

TRACOPOWER TBA 1-2421HI

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

21.6V

Maximum Input Voltage

26.4V dc

Output Current 1

100mA

Output Current 2

100mA

Output Voltage 2

-5V dc

Mount Type

PCB

Number of Outputs

2

MTBF

2000000h

Isolation Voltage

3kV dc

Maximum Output Power

1W

Package Type

SIP-7

Length

19.5mm

Width

6mm

Depth

9.55mm

Standards/Approvals

No

Series

TBA 1HI

Efficiency

0.79

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

3D Model

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1874018&DisplayLogo=False
