ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TEL 10-2410

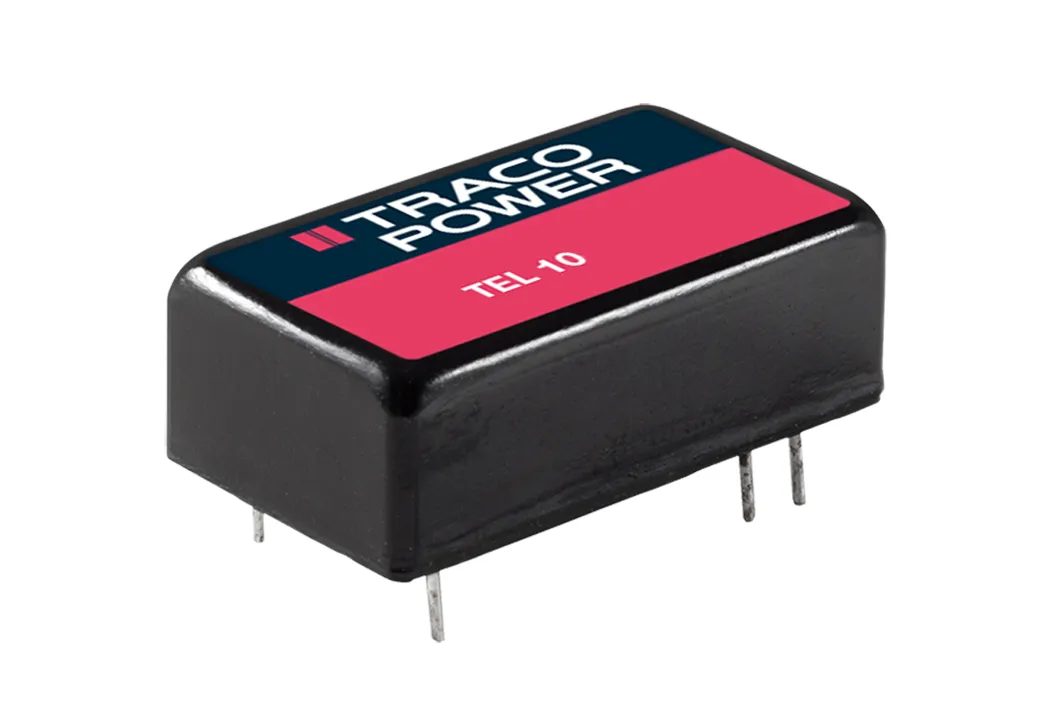

TRACOPOWER TEL 10-2410
- Output Voltage 1
- 3.3V dc
- Product Type
- DC/DC Converter
- Maximum Input Voltage
- 36V dc
- Minimum Input Voltage
- 18V
- Output Current 1
- 2.7A
- Mount Type
- PCB
- Input Ratio
- 02:01:00.000
- Number of Outputs
- 1
- MTBF
- 1000000h
- Isolation Voltage
- 1kV dc
- Package Type
- DIP-16
- Maximum Output Power
- 10W
- Series
- TEL 10
- Standards/Approvals
- No
- Width
- 13.7mm
- Length
- 23.8mm
- Depth
- 8mm
- Better World Claim
- Concentrated or Compact Solution
- Better World Product
- Yes
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Efficiency
- 0.8
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1875038&DisplayLogo=False
