ข้อมูลจำเพาะทางเทคนิค TRACOPOWER THN 15-2411WI-A1

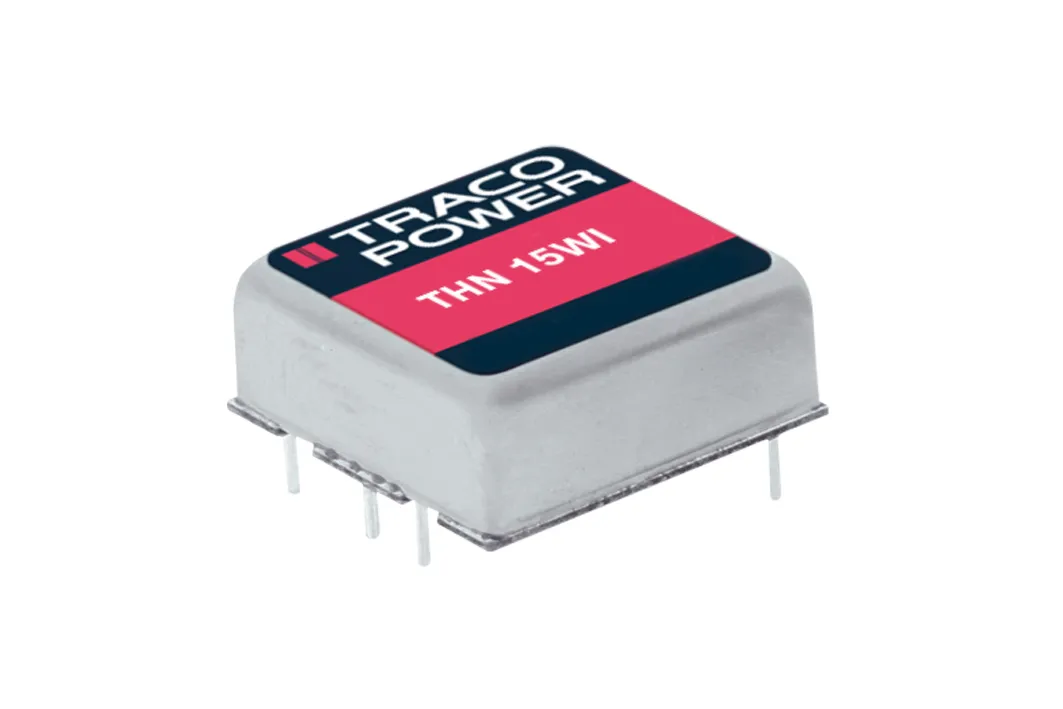

TRACOPOWER THN 15-2411WI-A1
- Output Voltage 1
- 5V dc
- Product Type
- DC/DC Converter
- Minimum Input Voltage
- 9V
- Maximum Input Voltage
- 36V dc
- Output Current 1
- 3A
- Mount Type
- Through Hole
- Input Ratio
- 04:01:00.000
- Number of Outputs
- 1
- MTBF
- 1600000h
- Output Voltage Adjustment Range
- -10 to 20 %
- Isolation Voltage
- 1.6kV dc
- Maximum Output Power
- 15W
- Package Type
- Encapsulated
- Length
- 25.4mm
- Depth
- 9.9mm
- Series
- THN 15WI
- Width
- 25.4mm
- Standards/Approvals
- No
- Efficiency
- 0.86
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1830642&DisplayLogo=False
