ข้อมูลจำเพาะทางเทคนิค TRACOPOWER THN 15-4811WI

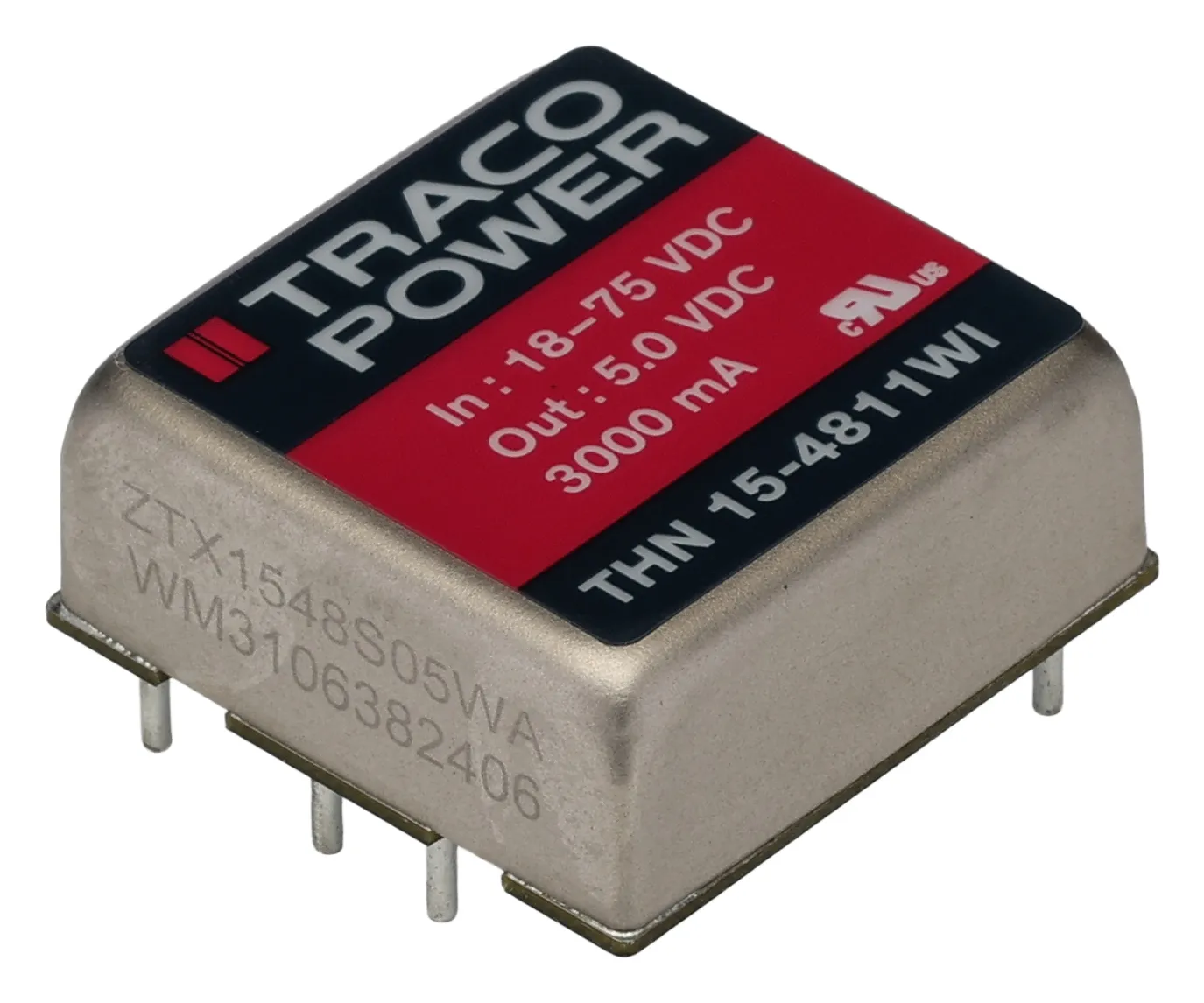

TRACOPOWER THN 15-4811WI
- Output Voltage 1
- 5V dc
- Product Type
- DC/DC Converter
- Minimum Input Voltage
- 18V
- Maximum Input Voltage
- 75V dc
- Output Current 1
- 3A
- Mount Type
- Through Hole
- Input Ratio
- 04:01:00.000
- MTBF
- 1400000h
- Number of Outputs
- 1
- Output Voltage Adjustment Range
- 4.5/5.5 V dc
- Number of Pins
- 6
- Isolation Voltage
- 1.6kV dc
- Package Type
- Shielded Metal Case with Insulated Baseplate
- Maximum Output Power
- 15W
- Standards/Approvals
- No
- Depth
- 9.9mm
- Width
- 25.4mm
- Length
- 25.4mm
- Series
- THN 15WI
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Efficiency
- 0.87
