ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TMR 10-2412WIR

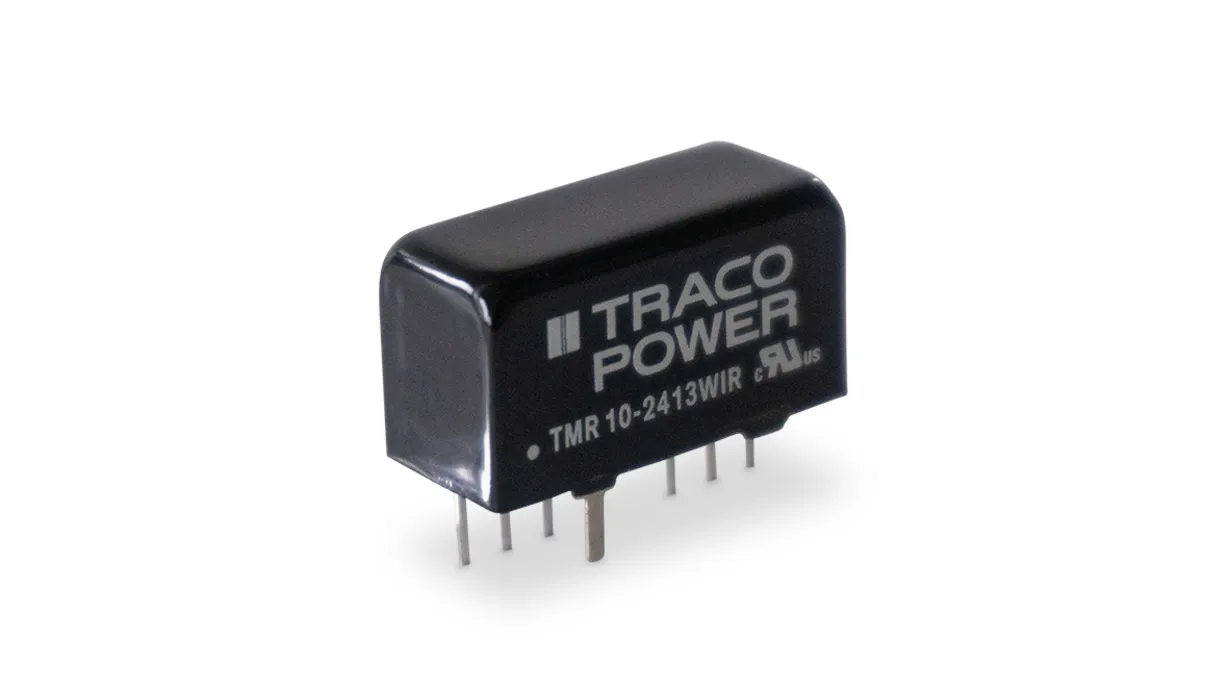

TRACOPOWER TMR 10-2412WIR
- Product Type
- DC/DC Converter
- Output Voltage 1
- 12V dc
- Maximum Input Voltage
- 160V
- Minimum Input Voltage
- 9V
- Output Current 1
- 840mA
- Mount Type
- PCB
- Output Voltage 2
- 15V
- Input Ratio
- 04:01:00.000
- Number of Outputs
- 1
- MTBF
- 2605000h
- Ripple and Noise
- 70mV Pk-Pk
- Isolation Voltage
- 3000V
- Number of Pins
- 7
- Maximum Output Power
- 10W
- Package Type
- SIP-8
- Length
- 22.0mm
- Standards/Approvals
- EN 45545-2, EN 50155, EN 61373, EN 62368-1, IEC 62368-1, UL 62368-1
- Depth
- 10.60mm
- Series
- TMR 10WIR
- Weight
- 7.7g
- Width
- 12.0mm
- Maximum Operating Temperature
- 75°C
- Minimum Operating Temperature
- -40°C
- Efficiency
- 0.89
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0608376&DisplayLogo=False
