ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TMR 10-4813WIR

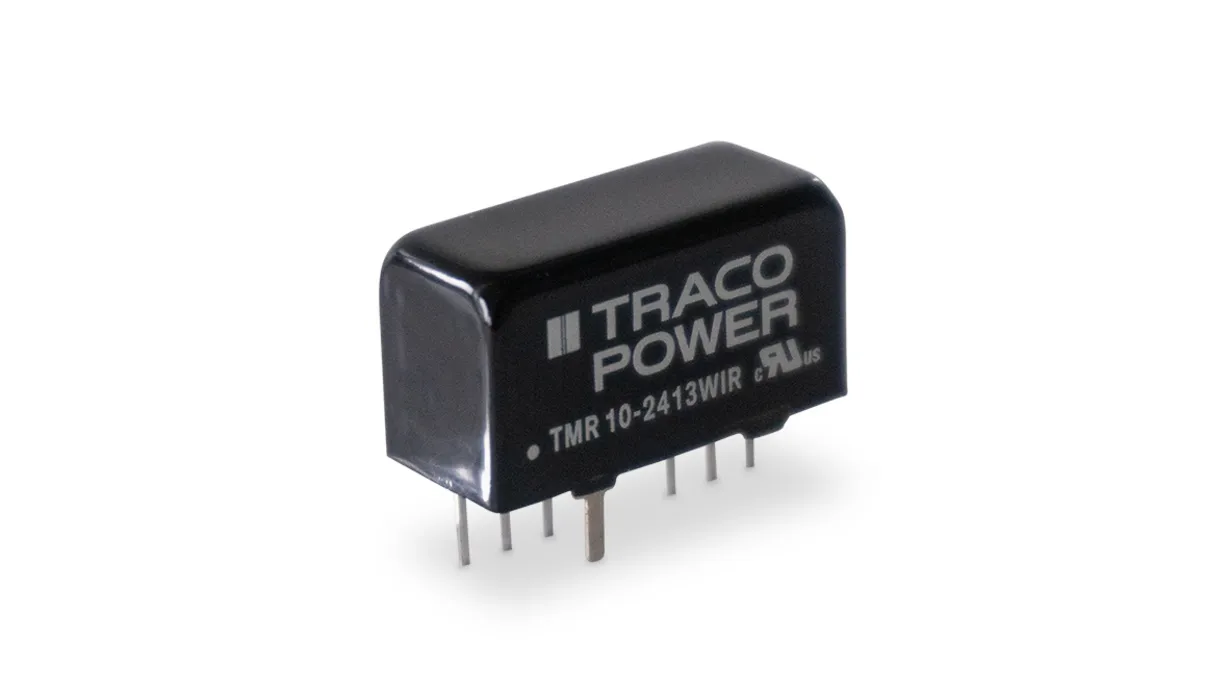

TRACOPOWER TMR 10-4813WIR
- Output Voltage 1
- 3.3V dc
- Product Type
- DC/DC Converter
- Minimum Input Voltage
- 9V
- Maximum Input Voltage
- 160V
- Output Current 1
- 2.5A
- Output Current 2
- 1000mA
- Output Voltage 2
- 5V dc
- Mount Type
- PCB
- Input Ratio
- 04:01:00.000
- MTBF
- 2605000h
- Number of Outputs
- 2
- Ripple and Noise
- 70mV Pk-Pk
- Isolation Voltage
- 3000V
- Number of Pins
- 8
- Package Type
- SIP-8
- Maximum Output Power
- 10W
- Depth
- 10.60mm
- Length
- 22.0mm
- Weight
- 7.7g
- Width
- 12.0mm
- Standards/Approvals
- EN 45545-2, EN 50155, EN 61373, IEC 62368-1, UL 62368-1
- Series
- TMR 10WIR
- Efficiency
- 0.89
- Maximum Operating Temperature
- 75°C
- Minimum Operating Temperature
- -40°C
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0608380&DisplayLogo=False
