ข้อมูลจำเพาะทางเทคนิค TRACOPOWER TXN 100PF-115

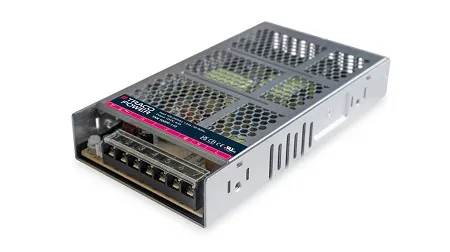

TRACOPOWER TXN 100PF-115
- Product Type
- Switching Power Supply
- Maximum Output Voltage
- 15V dc
- Number of Outputs
- 1
- Mount Type
- Chassis
- Power
- 100W
- SMPS Output Current
- 8500mA
- Minimum Operating Temperature
- 30°C
- Maximum Operating Temperature
- 70°C
- Weight
- 430g
- Depth
- 99mm
- Length
- 179mm
- Standards/Approvals
- EN 62368-1, IEC 62368-1, UL 62368-1
- Width
- 30mm
- Series
- TXN 100PF
- Efficiency
- 89%
- Maximum Input Voltage
- 264V ac
- Hazardous Area Certification
- No
- Minimum Input Voltage
- 90V ac
- Output Current
- 6.7mA
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=0588580&DisplayLogo=False
