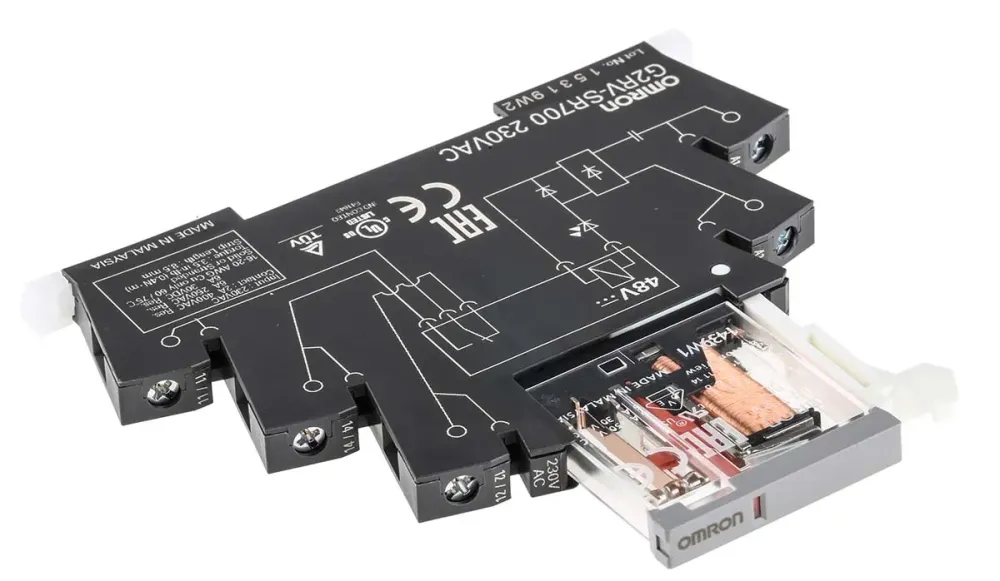

จำหน่าย Omron G2RV-SR700 AC230 : Make light work of heavy power distribution tasks with this power relay from OMRON. It switches current up to 6A, tackling the loads needed to drive motors and assembly lines effectively. และอุปกรณ์อื่นๆที่เกี่ยวข้องอีกมากมาย
คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 230V ac |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Switching Current | 6A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Screw |
| Maximum Switching Voltage AC | 440V ac |
| Maximum Switching Voltage DC | 125V dc |
| Maximum Switching Current AC | 6 A |
| Maximum Switching Current DC | 6 A |
| Length | 6.2mm |
| Coil Power | 1.7W |
| Height | 90mm |
| Standards Met | CE, CULus, TUV Certification, UL 508 File No. E41643 |
| Contact Material | Silver Alloy |
| Life | 50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations |
| Isolation Coil To Contact | 4kV ac |
| Maximum Operating Temperature | +55°C |
| Series | G2RV |
| Minimum Operating Temperature | -40°C |
| Depth | 78mm |
| Maximum Switching Power AC | 1.5 kVA |
| Maximum Switching Power DC | 180 W |
| Dimensions | 6.2 x 78 x 90mm |
| Application | Industrial |
