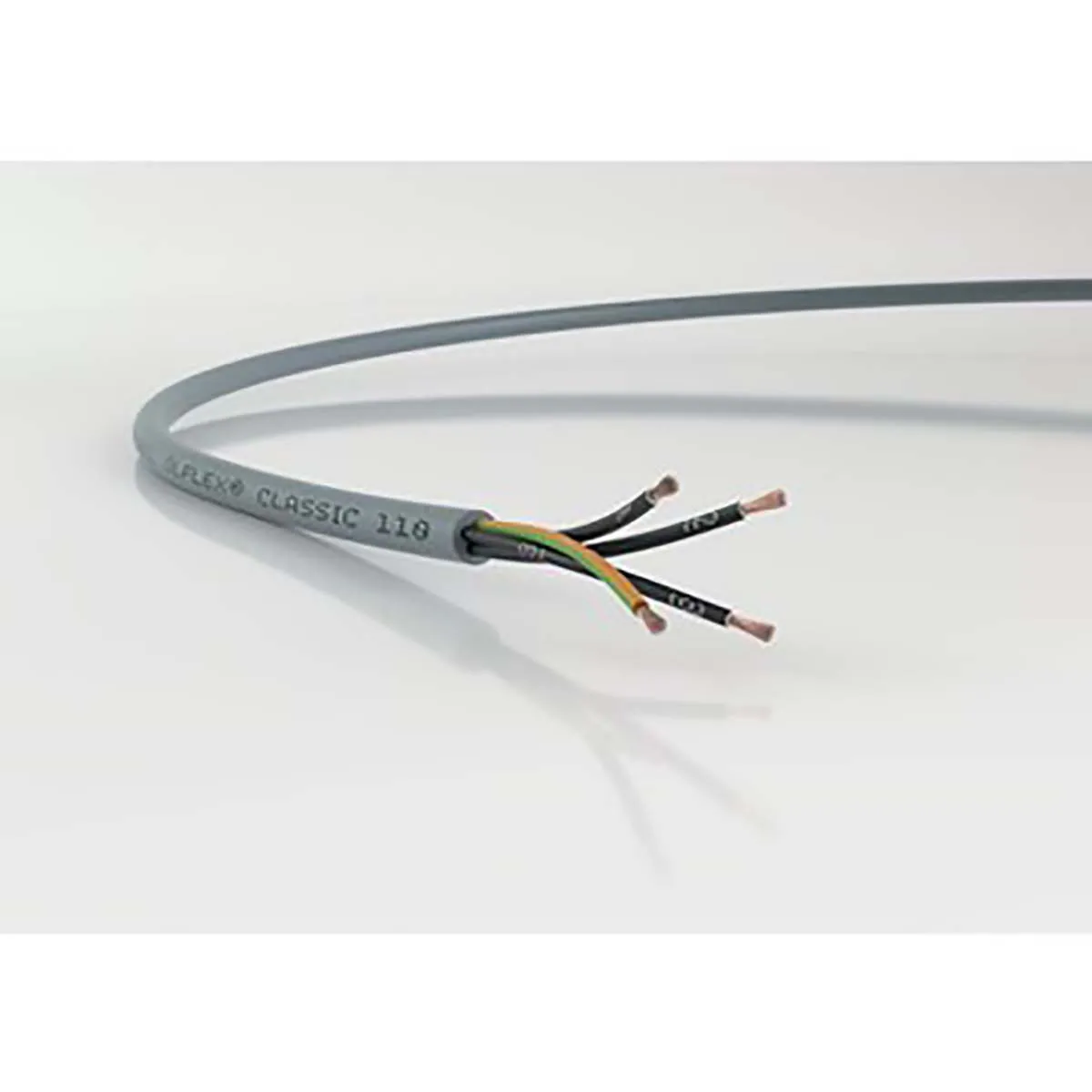

จำหน่าย Lapp 1119218 : Choose this LAPP control cable to reliably transmit information across your equipment. It has 18 conductor cores, so packs multiple data connections into one cable, saving space in busy wiring systems. และอุปกรณ์อื่นๆที่เกี่ยวข้องอีกมากมาย
คุณสมบัติ | รายละเอียด |
|---|---|
| Series | ÖLFLEX CLASSIC 110 |
| Number of Cores | 18 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Control Cable Type | YY |
| Sheath Colour | Grey |
| American Wire Gauge | 17 AWG |
| CPR Certification | Eca |
| Outer Diameter | 12.7mm |
| Sheath Material | PVC |
| Standards Met | CE |
| Oil Resistant | Yes |
| Filler Material | Non-Wicking Filler |
| Current Rating | 15 A |
| Insulation Material | PVC |
| Conductor Resistance | 19.5 Ω/km |
| Maximum Operating Temperature | +80°C |
| Earth Cable | Yes |
| Voltage Rating | 300/500 V |
| Conductor Material | Copper |
| Minimum Operating Temperature | -40°C |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D |
| Core Strands | 32/0.2 mm |
ออกใบสั่งซื้อหรือลงชื่อในใบเสนอราคาฉบับนี้ ส่งมายัง [email protected] หรือส่งกลับทางไลน์ @thsolution
ทางบริษัทจะจำหน่ายเฉพาะรายการที่มีพร้อมส่งจากโรงงานเท่านั้น ซึ่งใช้เวลาเบิกสินค้าจากคลัง (อังกฤษ/เยอรมนี) 7-10 วันทำการ (จ.-ศ. ไม่นับวันหยุดนักขัตฤกษ์)
** ทางบริษัท งดจำหน่ายสินค้าทุกรายการที่ไม่มีพร้อมส่งทันทีจากโรงงาน**
สินค้ามีรับประกัน เป็นระยะเวลา 1 ปี ตามเงื่อนไขโรงงาน
สินค้าจะจัดส่งโดยขนส่งเอกชน KEX หรือ ไปรษณีย์ไทย EMS (2,000.00 ขึ้นไป ไม่รวมภาษี จัดส่งฟรี)
**สำหรับการสั่งซื้อยอดไม่ถึง 2,000.00 ไม่รวมภาษี มีค่าจัดส่ง 100 บาท**
