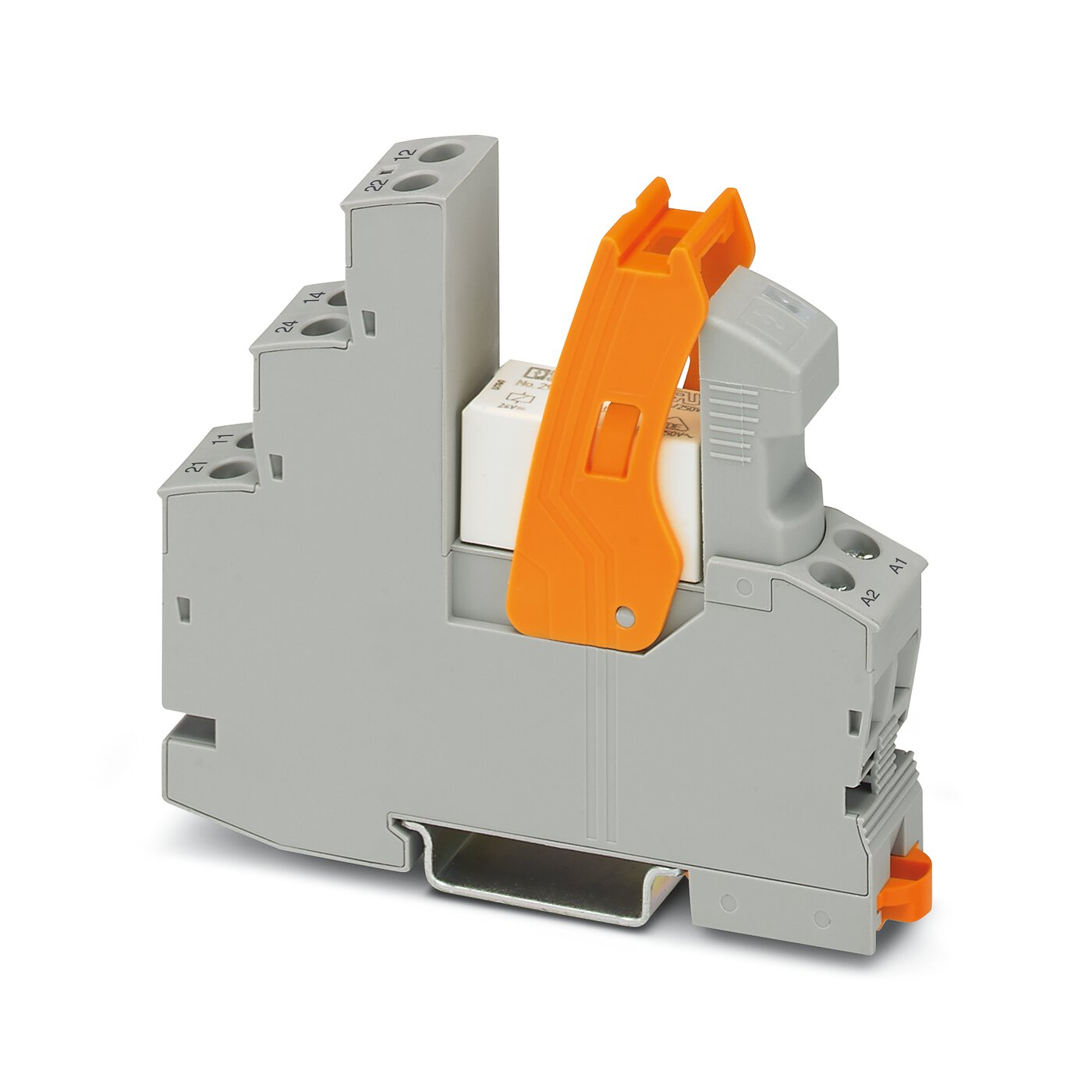

จำหน่าย Phoenix Contact 2903347 : Cut the crosstalk with this interface relay from Phoenix Contact. As it comes with galvanic isolation, you can send digital signals from 230V AC input sources to an output of 5 to 250V AC/DC without electrical interference. และอุปกรณ์อื่นๆที่เกี่ยวข้องอีกมากมาย
คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 230V ac |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Number of Poles | 2 |
| Minimum Input Voltage | 184V ac |
| Maximum Input Voltage | 264.5V ac |
| Terminal Type | Screw |
| Switching Voltage | 250V ac/dc |
| Depth | 75mm |
| Height | 90mm |
| Length | 16mm |
| Series | RIF-1-RSC-LV-230AC/2X21 |
| Contact Material | Silver Alloy |
| Input Current | 6mA |
| Operating Temperature Range | -40 → +50°C |
| Life | 10000000 cycles |
| Maximum Operating Temperature | +50°C |
| Dimensions | 16 x 75 x 90mm |
| Standards Met | DIN EN 50178 |
| Minimum Operating Temperature | -40°C |
| Relay Type | Solid State Relay |
| Relay Switching Classification | AC/DC Switching Relay |
| Input Voltage Range | 184 → 264.5V ac |
| Special Features | IP20 Terminal Protection |
ออกใบสั่งซื้อหรือลงชื่อในใบเสนอราคาฉบับนี้ ส่งมายัง [email protected] หรือส่งกลับทางไลน์ @thsolution
ทางบริษัทจะจำหน่ายเฉพาะรายการที่มีพร้อมส่งจากโรงงานเท่านั้น ซึ่งใช้เวลาเบิกสินค้าจากคลัง (อังกฤษ/เยอรมนี) 7-10 วันทำการ (จ.-ศ. ไม่นับวันหยุดนักขัตฤกษ์)
** ทางบริษัท งดจำหน่ายสินค้าทุกรายการที่ไม่มีพร้อมส่งทันทีจากโรงงาน**
สินค้ามีรับประกัน เป็นระยะเวลา 1 ปี ตามเงื่อนไขโรงงาน
สินค้าจะจัดส่งโดยขนส่งเอกชน KEX หรือ ไปรษณีย์ไทย EMS (2,000.00 ขึ้นไป ไม่รวมภาษี จัดส่งฟรี)
**สำหรับการสั่งซื้อยอดไม่ถึง 2,000.00 ไม่รวมภาษี มีค่าจัดส่ง 100 บาท**
