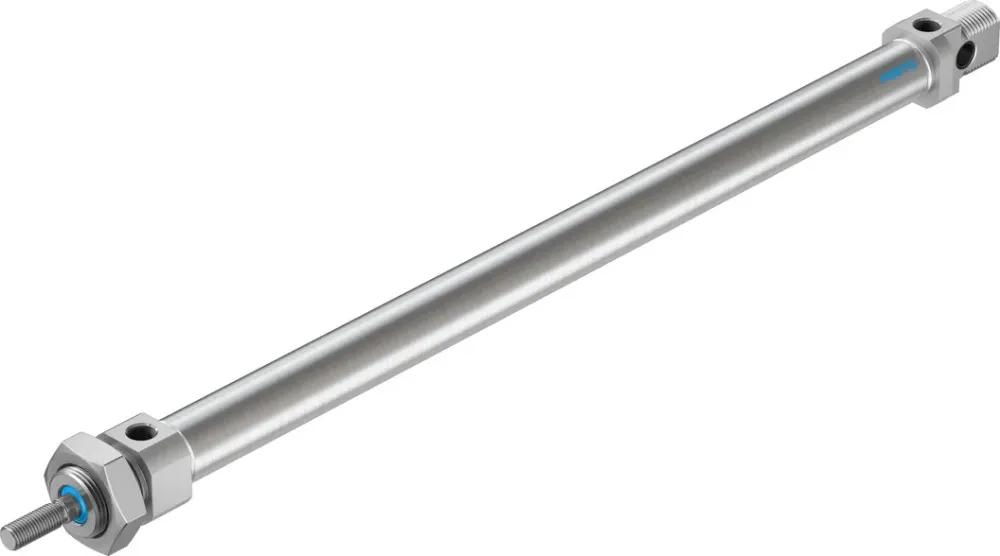

จำหน่าย Festo DSNU-20-300-P-A : When you need a helping hand to move industrial loads, turn to this pneumatic cylinder from Festo. It s a double-acting unit in which forward and backward thrusts are controlled by compressed air alternating between its two ports. และอุปกรณ์อื่นๆที่เกี่ยวข้องอีกมากมาย
คุณสมบัติ | รายละเอียด |
|---|---|
| Stroke | 300mm |
| Bore | 20mm |
| Action | Double |
| Manufacturer Series | DSNU |
| Length | 441.5mm |
| Pneumatic Connection | G 1/8 |
| Piston Rod Thread Gender | Male |
| Cushioning Type | Elastomer |
| Dimensions | 27 x 441.5mm |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +80°C |
| Weight | 402.8g |
| Minimum Operating Temperature | -20°C |
| Stroke Interval Weight | 7.2 (At 10 mm Stroke) g |
| Diameter | 27mm |
| Test Weight | 186.8 (At 0 mm Stroke) g |
| ISO Standard | ISO 6432 |
| VDMA Standard | VDMA24364-B1/B2-L |
| Model Number p | 19217 |
