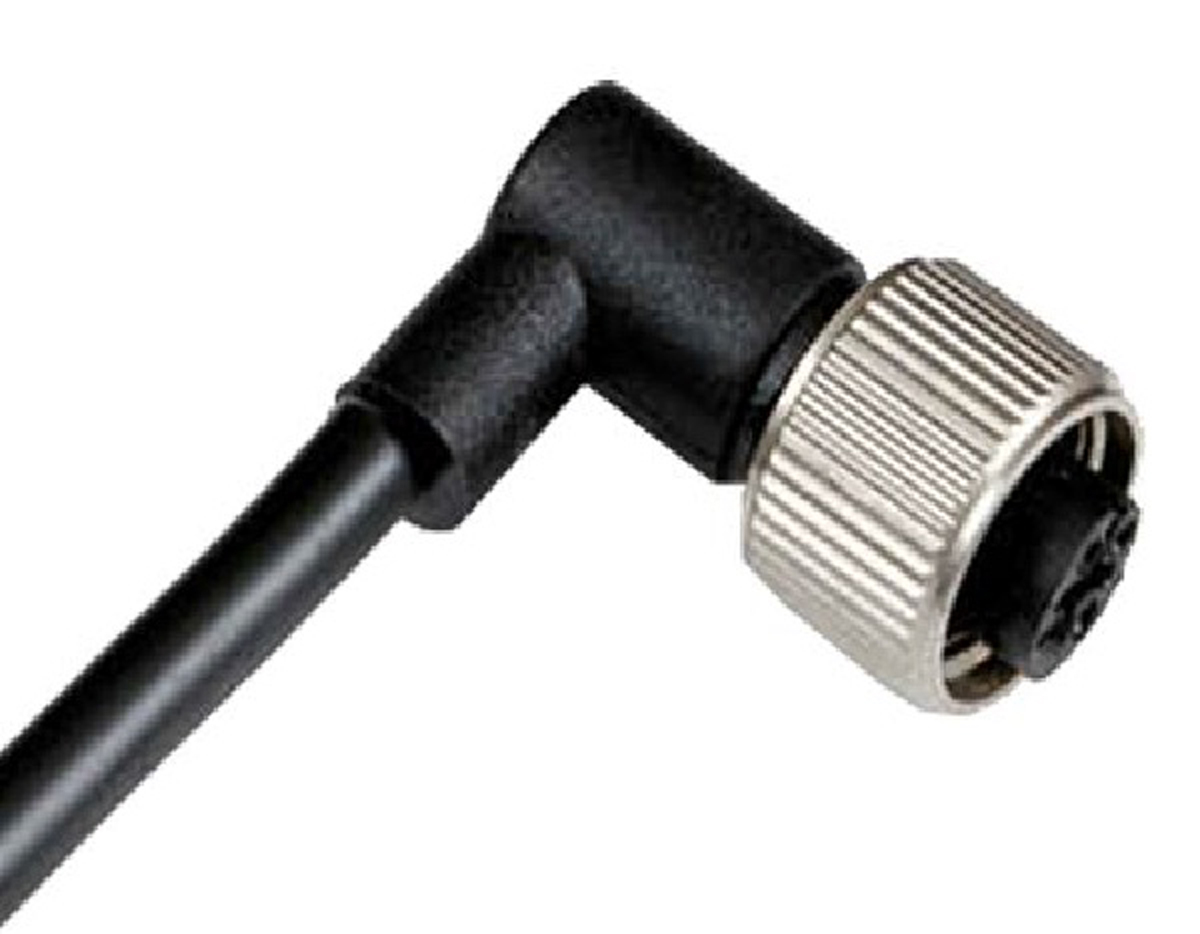

จำหน่าย RS PRO 144-7587 : This right-angled connector from RS PRO is designed for use in tight spaces. The cable has one unterminated, partially stripped end, making it easy to customise the termination to fit different machinery and components. และอุปกรณ์อื่นๆที่เกี่ยวข้องอีกมากมาย
คุณสมบัติ | รายละเอียด |
|---|---|
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 4 |
| Sheath Material | PUR |
| Sheath Colour | Black |
| Length | 5m |
| Connector 1 Number of Contacts | 4 |
| Connector 1 | M12 |
| Connector 1 Orientation | Right Angle |
| Connector 1 Gender | Female |
| Connector 2 | Unterminated |
| Coding | B |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V |
| Current Rating | 4 A |
| IP Rating | IP67 |
| Conductor Material | CuZn |
| Conductor Resistance | ≥100 MΩ |
| American Wire Gauge | 24 AWG |
| Minimum Operating Temperature | -25°C |
| Standards Met | CE, TUV Certified |
| Maximum Operating Temperature | +75°C |
| Cable Shape | Multicore |
| Connector 1 Housing Gender | Female |
| Operating Temperature Range | -25 → +75 °C |
