ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 203 PFA

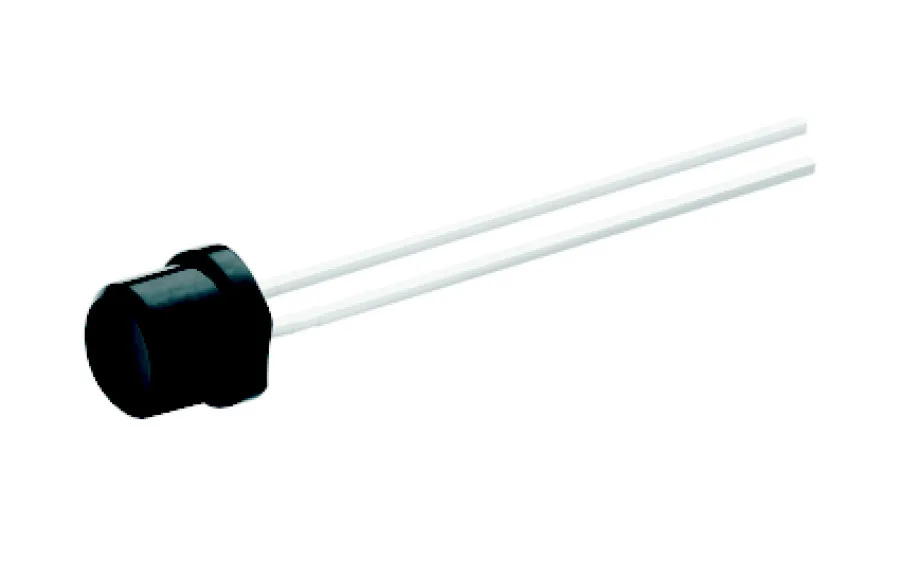

ams OSRAM SFH 203 PFA
- Spectrums Detected
- Infrared
- Product Type
- Photodiode
- Wavelength of Peak Sensitivity
- 900nm
- Package Type
- Plastic
- Packaging
- Ammo
- Mount Type
- Through Hole
- Number of Pins
- 2
- Minimum Wavelength Detected
- 400nm
- Maximum Wavelength Detected
- 1100nm
- Typical Fall Time
- 5ns
- Amplified
- No
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Width
- 5mm
- Length
- 5.9mm
- Standards/Approvals
- RoHS
- Height
- 5mm
- Diameter
- 4.8mm
- Angle of Half Sensitivity
- 20 °
- Polarity
- Forward
- Breakdown Voltage
- 20V
- Open Circuit Voltage
- 350mV
- Automotive Standard
- No
- Series
- SFH
- Typical Rise Time
- 5ns
- Dark Current
- 5nA
- Short Circuit Current
- 25mA
