ข้อมูลจำเพาะทางเทคนิค Vishay TEMD1020

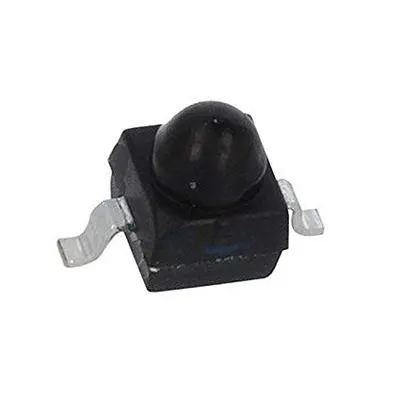

Vishay TEMD1020
- Spectrums Detected
- Infrared
- Product Type
- Silicon PIN Photodiode
- Wavelength of Peak Sensitivity
- 940nm
- Package Type
- Surface Mount
- Mount Type
- Surface
- Packaging
- Tape & Reel
- Number of Pins
- 2
- Minimum Wavelength Detected
- 370nm
- Maximum Wavelength Detected
- 1070nm
- Typical Fall Time
- 80ns
- Amplified
- No
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 100°C
- Width
- 4.24mm
- Length
- 5mm
- Standards/Approvals
- RoHS
- Height
- 1.12mm
- Angle of Half Sensitivity
- ±15 °
- Automotive Standard
- AEC-Q101
- Open Circuit Voltage
- 350mV
- Polarity
- Forward
- Breakdown Voltage
- 60V
- Dark Current
- 2nA
- Short Circuit Current
- 32mA
- Typical Rise Time
- 80ns
