ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 205 FA

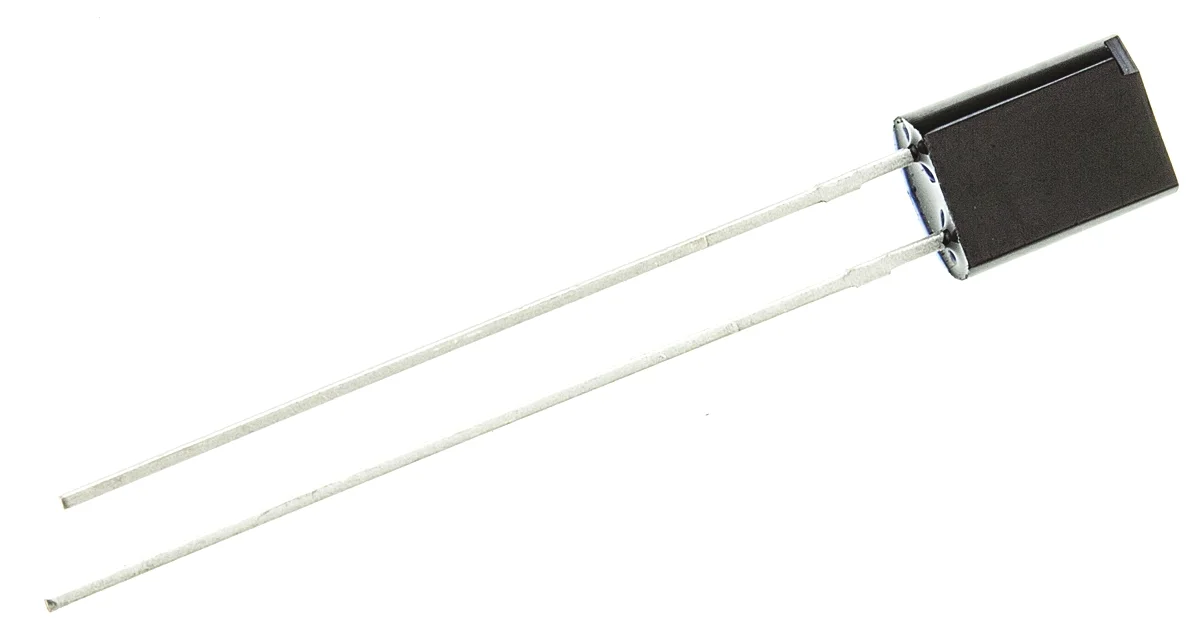

ams OSRAM SFH 205 FA
- Spectrums Detected
- Infrared
- Product Type
- Photodiode
- Wavelength of Peak Sensitivity
- 900nm
- Package Type
- T-1 3/4
- Packaging
- Tape and Reel
- Mount Type
- Through Hole
- Number of Pins
- 2
- Minimum Wavelength Detected
- 740nm
- Maximum Wavelength Detected
- 1100nm
- Typical Fall Time
- 20ns
- Minimum Operating Temperature
- -40°C
- Amplified
- No
- Maximum Operating Temperature
- 100°C
- Standards/Approvals
- RoHS Compliant
- Width
- 6.3mm
- Height
- 6.9mm
- Length
- 5.1mm
- Angle of Half Sensitivity
- ± 60 °
- Diameter
- 5mm
- Open Circuit Voltage
- 330V
- Typical Rise Time
- 20ns
- Series
- SFH
- Automotive Standard
- No
- Short Circuit Current
- 56mA
- Dark Current
- 2nA
- Breakdown Voltage
- 32V
- Polarity
- Forward
