ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 206 K

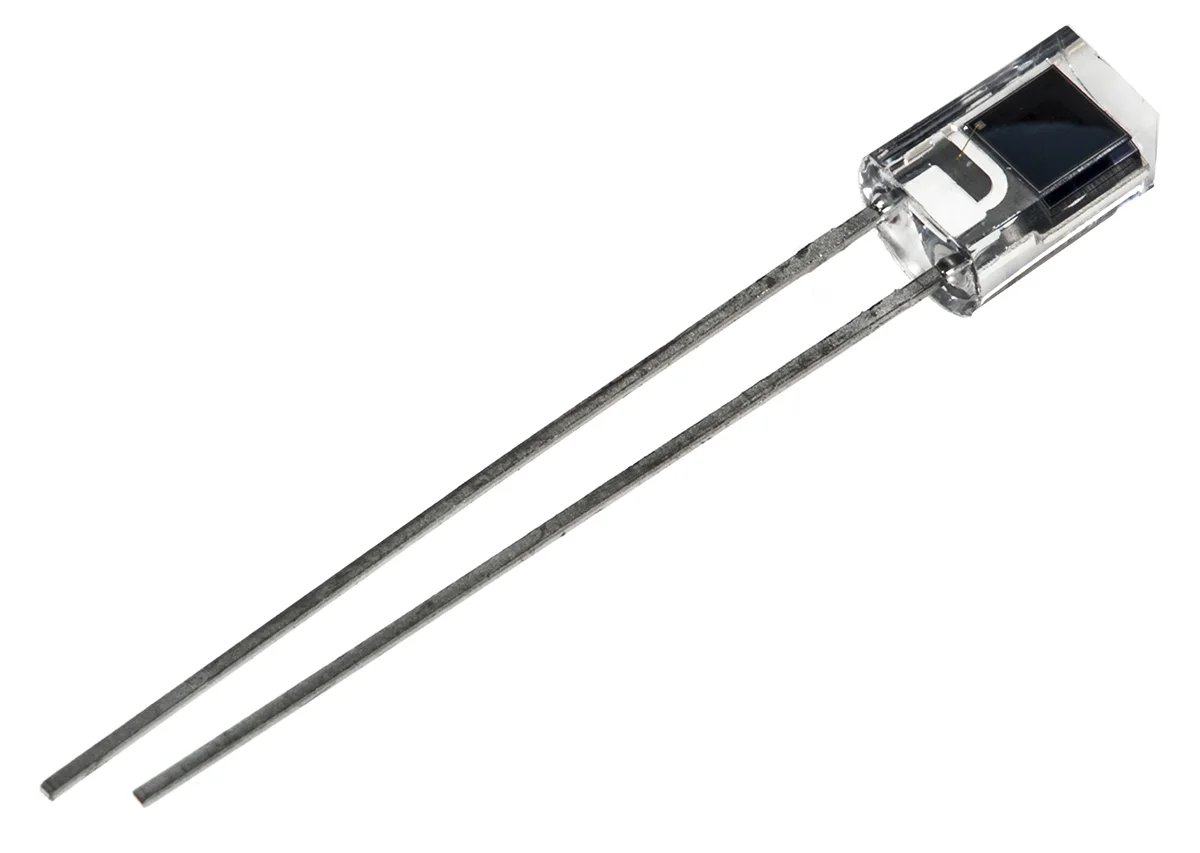

ams OSRAM SFH 206 K
- Product Type
- Photodiode
- Spectrums Detected
- Visible Light, Infrared
- Wavelength of Peak Sensitivity
- 850nm
- Package Type
- T-1 3/4
- Packaging
- Tape & Reel
- Mount Type
- Through Hole
- Number of Pins
- 2
- Minimum Wavelength Detected
- 400nm
- Maximum Wavelength Detected
- 1100nm
- Typical Fall Time
- 0.02ms
- Minimum Operating Temperature
- -40°C
- Amplified
- No
- Maximum Operating Temperature
- 85°C
- Length
- 5.1mm
- Height
- 6.9mm
- Width
- 4.1mm
- Standards/Approvals
- RoHS
- Angle of Half Sensitivity
- 60 °
- Automotive Standard
- AEC-Q101
- Polarity
- Forward
- Series
- SFH
- Dark Current
- 5nA
- Open Circuit Voltage
- 350mV
- Breakdown Voltage
- 20V
- Short Circuit Current
- 80mA
- Typical Rise Time
- 0.02ms
