ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 213

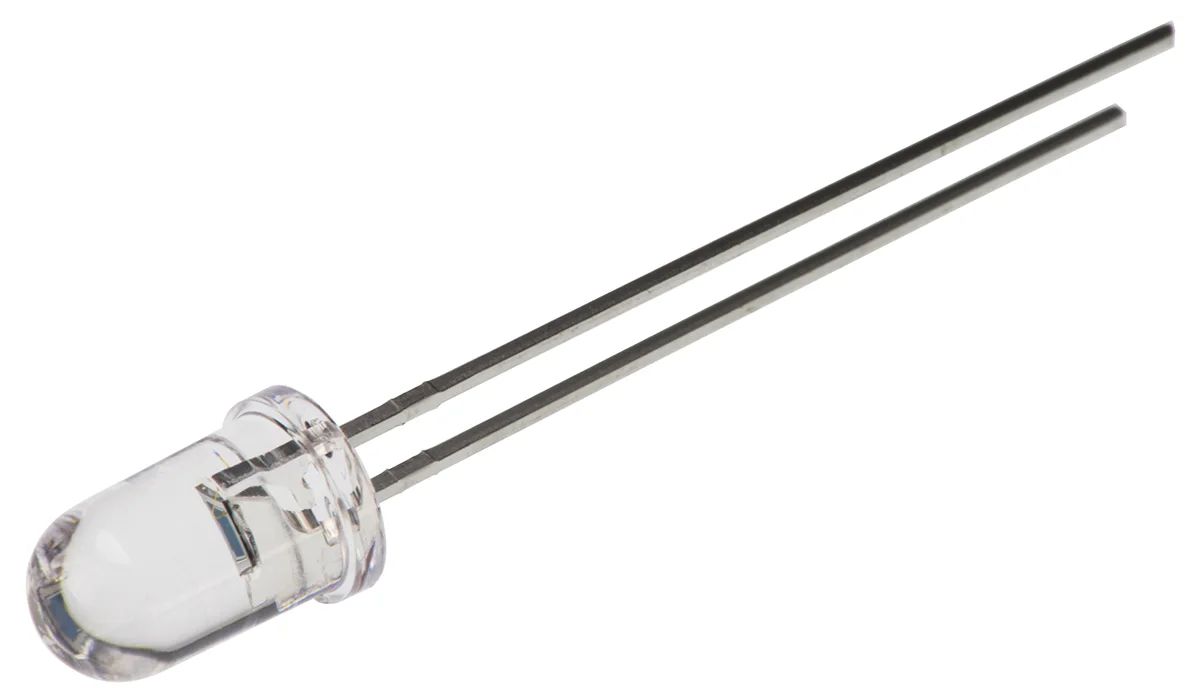

ams OSRAM SFH 213
- Spectrums Detected
- Infrared, Visible Light
- Product Type
- Photodiode
- Wavelength of Peak Sensitivity
- 850nm
- Package Type
- T-1 3/4
- Packaging
- Tape & Reel
- Mount Type
- Through Hole
- Number of Pins
- 2
- Minimum Wavelength Detected
- 400nm
- Maximum Wavelength Detected
- 1100nm
- Typical Fall Time
- 0.005ms
- Amplified
- No
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Width
- 5mm
- Height
- 9mm
- Standards/Approvals
- RoHS
- Length
- 5.9mm
- Angle of Half Sensitivity
- 10 °
- Breakdown Voltage
- 20V
- Open Circuit Voltage
- 350mV
- Typical Rise Time
- 0.005ms
- Dark Current
- 5nA
- Series
- SFH
- Automotive Standard
- No
- Polarity
- Forward
- Short Circuit Current
- 71mA
