ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 2400

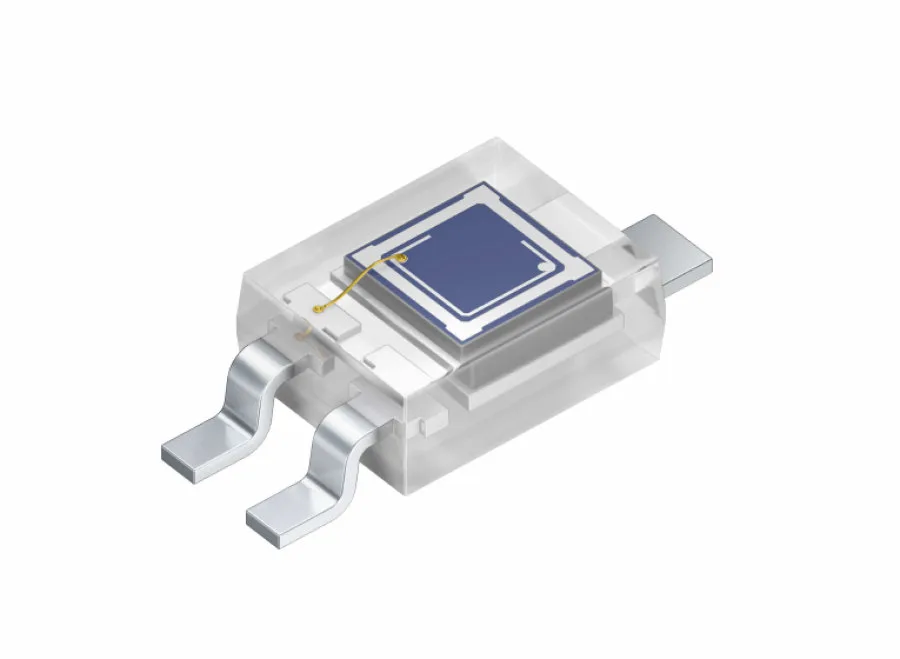

ams OSRAM SFH 2400
- Spectrums Detected
- Infrared, Ultraviolet, Visible Light
- Product Type
- Photodiode
- Wavelength of Peak Sensitivity
- 850nm
- Package Type
- Clear Epoxy
- Packaging
- Tape & Reel
- Mount Type
- Surface
- Number of Pins
- 3
- Minimum Wavelength Detected
- 380nm
- Maximum Wavelength Detected
- 1100nm
- Typical Fall Time
- 0.01ms
- Minimum Operating Temperature
- -40°C
- Amplified
- No
- Maximum Operating Temperature
- 100°C
- Standards/Approvals
- No
- Width
- 2mm
- Height
- 1.05mm
- Length
- 2.6mm
- Angle of Half Sensitivity
- ±60 °
- Polarity
- Forward
- Automotive Standard
- No
- Series
- SFH 2400
- Typical Rise Time
- 0.01ms
- Open Circuit Voltage
- 320V
- Breakdown Voltage
- 50V
- Dark Current
- 5nA
- Short Circuit Current
- 10mA
