ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 2401

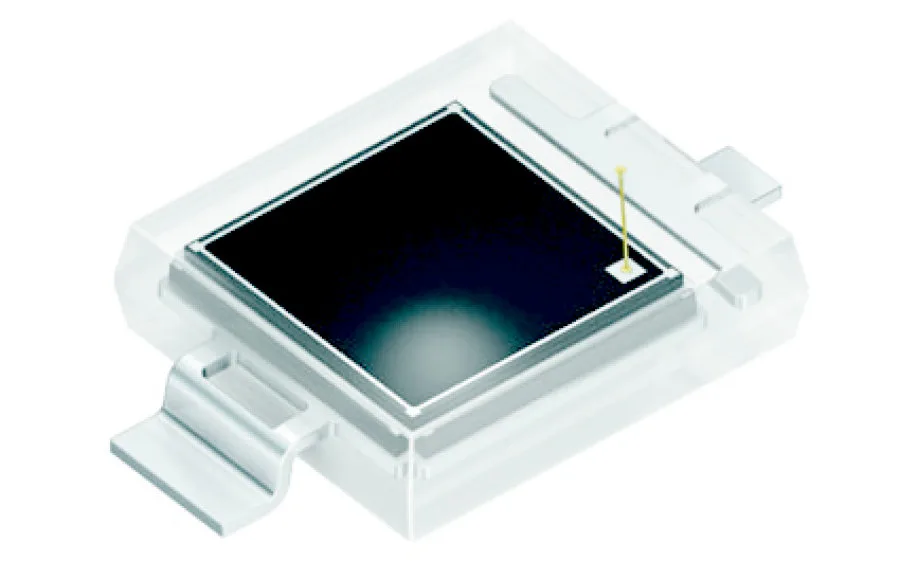

ams OSRAM SFH 2401
- Product Type
- Photodiode
- Spectrums Detected
- Infrared, Visible Light
- Wavelength of Peak Sensitivity
- 950nm
- Package Type
- DIL
- Mount Type
- Surface
- Packaging
- Tape & Reel
- Number of Pins
- 2
- Minimum Wavelength Detected
- 300nm
- Maximum Wavelength Detected
- 950nm
- Typical Fall Time
- 40ns
- Amplified
- No
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Width
- 5mm
- Length
- 4.5mm
- Standards/Approvals
- RoHS
- Height
- 2mm
- Angle of Half Sensitivity
- 60 °
- Short Circuit Current
- 76mA
- Automotive Standard
- No
- Series
- SFH
- Typical Rise Time
- 40ns
- Open Circuit Voltage
- 350mV
- Breakdown Voltage
- 20V
- Polarity
- Forward
- Dark Current
- 5nA
