ข้อมูลจำเพาะทางเทคนิค ams OSRAM SFH 2430-Z

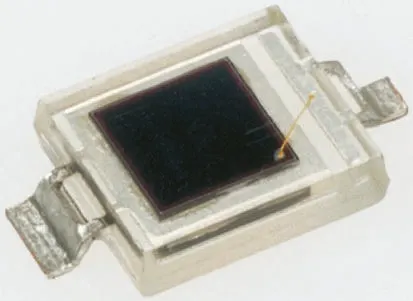

ams OSRAM SFH 2430-Z
- Product Type
- Photodiode
- Spectrums Detected
- Visible Light, Infrared
- Wavelength of Peak Sensitivity
- 570nm
- Package Type
- DIP
- Packaging
- Tape & Reel
- Mount Type
- Surface
- Number of Pins
- 2
- Minimum Wavelength Detected
- 400nm
- Maximum Wavelength Detected
- 900nm
- Typical Fall Time
- 40ns
- Amplified
- No
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Width
- 4mm
- Standards/Approvals
- RoHS
- Length
- 4.5mm
- Height
- 1.2mm
- Angle of Half Sensitivity
- 60 °
- Polarity
- Forward
- Dark Current
- 5nA
- Series
- SFH
- Breakdown Voltage
- 20V
- Open Circuit Voltage
- 350mV
- Automotive Standard
- No
- Typical Rise Time
- 40ns
- Short Circuit Current
- 71mA
