ข้อมูลจำเพาะทางเทคนิค Broadcom HDSM-203H

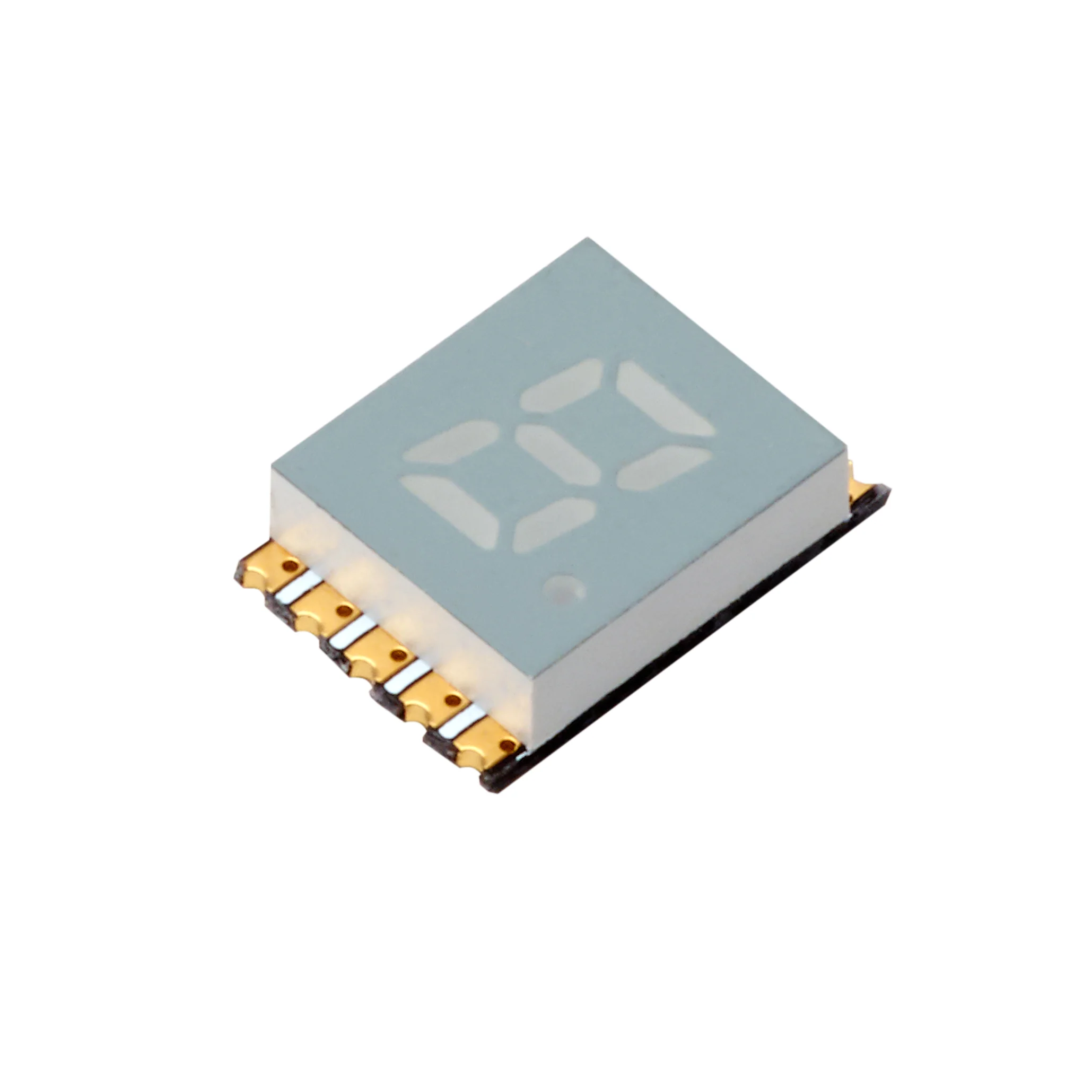

Broadcom HDSM-203H
- Product Type
- LED Display
- Display Type
- LED
- Number of Characters
- 1
- LED Colour
- Green
- Number of Segments
- 7
- Dominant Wavelength
- 572nm
- Character Width
- 3.2mm
- Character Height
- 5.1mm
- Common Connection
- Cathode
- Mount Type
- Surface
- External Depth
- 2.8mm
- External Height
- 10mm
- External Width
- 5.76mm
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 105°C
- Luminous Intensity
- 5mcd
- Colour of Face
- Grey
- Standards/Approvals
- RoHS
- Power Dissipation
- 65mW
- Decimal Orientation
- Right Side
- Series
- HDSM
- Forward Current
- 25mA
