ข้อมูลจำเพาะทางเทคนิค Hamamatsu Photonics S5972

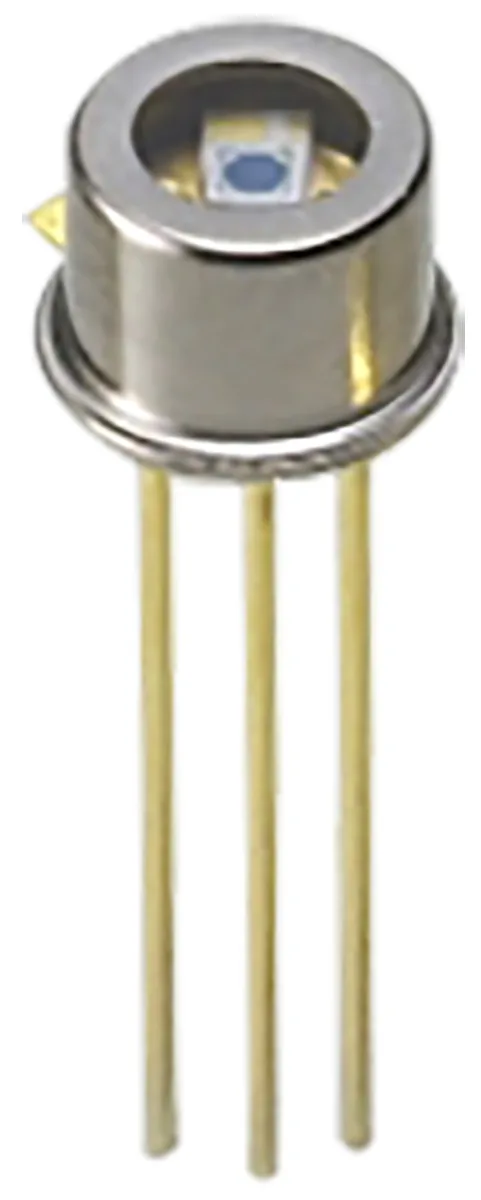

Hamamatsu Photonics S5972
- Spectrums Detected
- Visible Light, Infrared
- Product Type
- Photodiode
- Wavelength of Peak Sensitivity
- 800nm
- Package Type
- TO-18
- Packaging
- Tape & Reel
- Mount Type
- Through Hole
- Number of Pins
- 3
- Minimum Wavelength Detected
- 320nm
- Maximum Wavelength Detected
- 1000nm
- Typical Fall Time
- 0.6ns
- Amplified
- No
- Minimum Operating Temperature
- -25°C
- Maximum Operating Temperature
- 85°C
- Width
- 6mm
- Standards/Approvals
- RoHS
- Length
- 8.2mm
- Height
- 3.6mm
- Diameter
- 5.4mm
- Angle of Half Sensitivity
- 60 °
- Dark Current
- 0.1nA
- Short Circuit Current
- 0.42mA
- Typical Rise Time
- 0.6ns
- Breakdown Voltage
- 25V
- Series
- S5972
- Automotive Standard
- No
- Polarity
- Positive
