ข้อมูลจำเพาะทางเทคนิค Omron S320285W

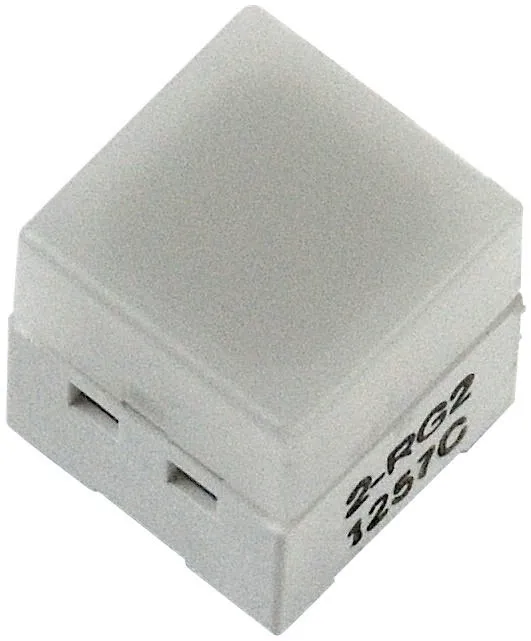

Omron S320285W
- Contact Configuration
- SPST
- Product Type
- Tactile Switch
- Terminal Type
- Solder
- Switch Operation
- Momentary
- Actuator Colour
- Green, Red
- Length
- 10mm
- Actuator Length
- 5.2mm
- Width
- 10mm
- Illuminated
- Yes
- Actuator Orientation
- Straight
- Actuator Style
- Cap
- Contact DC Voltage
- 24V dc
- Minimum Operating Temperature
- -25°C
- Switch Configuration
- (On)-Off
- Maximum Operating Temperature
- 70°C
- Switch Contact Current
- 50mA
- Series
- B3W9
- Standards/Approvals
- RoHS
- IP Rating
- IP00
- Operating Force
- 1.57N
- Height
- 11mm
- Mechanical Life
- 1000000Operations
- 3D Model
- https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7944086P&DisplayLogo=False
