ข้อมูลจำเพาะทางเทคนิค Panasonic MC25MOSRG

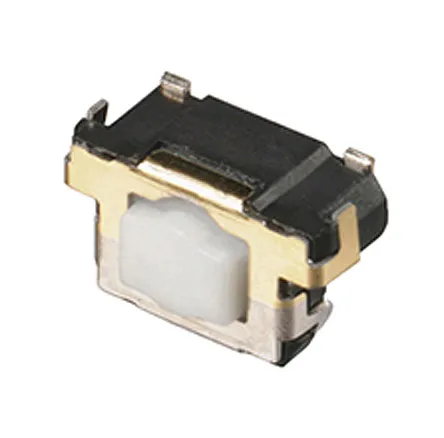

Panasonic MC25MOSRG
- Contact Configuration
- SPST
- Product Type
- Tactile Switch
- Terminal Type
- Solder
- Switch Operation
- Momentary
- Actuator Colour
- Natural
- Actuator Length
- 2.6mm
- Length
- 6.2mm
- Width
- 3mm
- Illuminated
- No
- Minimum Operating Temperature
- -40°C
- Contact DC Voltage
- 15V dc
- Actuator Style
- Push Plate
- Actuator Orientation
- Right Angle
- Mount Type
- Edge
- Switch Configuration
- (On)-Off
- Maximum Operating Temperature
- 85°C
- Switch Contact Current
- 20mA
- Standards/Approvals
- RoHS
- IP Rating
- IP67
- Series
- EVQ
- Height
- 2.1mm
- Operating Force
- 1N
- Mechanical Life
- 1000000Operations
