ข้อมูลจำเพาะทางเทคนิค Schurter MPZI022/F/GN/24

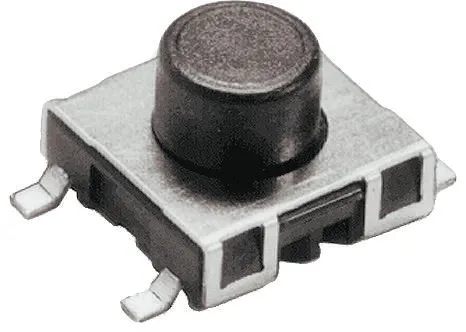

Schurter MPZI022/F/GN/24
- Product Type
- Tactile Switch
- Contact Configuration
- SPST
- Terminal Type
- Surface Mount
- Actuator Colour
- Black
- Length
- 11.4mm
- Actuator Length
- 1.3mm
- Width
- 11.4mm
- Illuminated
- No
- Contact DC Voltage
- 42V dc
- Minimum Operating Temperature
- -40°C
- Mount Type
- Surface
- Switch Contact Current
- 50mA
- Maximum Operating Temperature
- 85°C
- Series
- SMS
- Standards/Approvals
- RoHS
- IP Rating
- IP67
- Height
- 7.75mm
- Operating Force
- 2.2N
- Mechanical Life
- 1000000Cycles
