ข้อมูลจำเพาะทางเทคนิค TE Connectivity 84-ACKS-C16-04C3

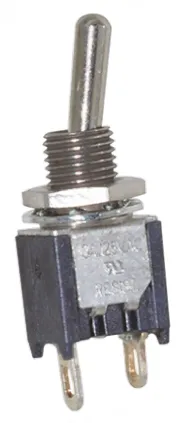

TE Connectivity 84-ACKS-C16-04C3
- Product Type
- Toggle Switch
- Contact Configuration
- SPST
- Switch Operation
- On-Off
- Switch Contact Current
- 3A
- Mount Type
- Panel
- Terminal Type
- Solder
- Panel Cutout Size
- 1.85 mm
- Contact DC Voltage
- 28V dc
- Actuator Length
- 5.08mm
- Minimum Operating Temperature
- -30°C
- Contact AC Voltage
- 125V ac
- Maximum Operating Temperature
- 85°C
- Standards/Approvals
- RoHS
- Series
- TT
- Mechanical Life
- 80000Cycles
