ข้อมูลจำเพาะทางเทคนิค Vishay TEMD5010X01

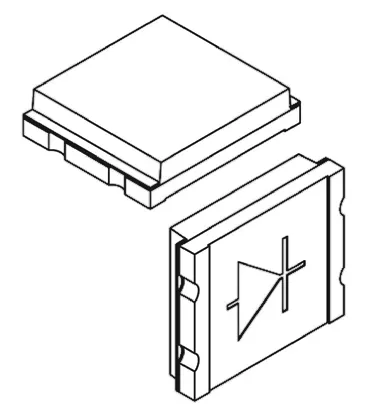

Vishay TEMD5010X01
- Product Type
- Photodiode
- Spectrums Detected
- Infrared, Visible Light
- Wavelength of Peak Sensitivity
- 940nm
- Package Type
- Top View
- Mount Type
- Surface
- Packaging
- Tape & Reel
- Number of Pins
- 4
- Minimum Wavelength Detected
- 430nm
- Maximum Wavelength Detected
- 1100nm
- Typical Fall Time
- 100ns
- Minimum Operating Temperature
- -40°C
- Amplified
- No
- Maximum Operating Temperature
- 100°C
- Height
- 1.12mm
- Length
- 5mm
- Width
- 4.24mm
- Standards/Approvals
- J-STD-020, RoHS 2002/95/EC, WEEE 2002/96/EC
- Angle of Half Sensitivity
- ± 65 °
- Typical Rise Time
- 100ns
- Automotive Standard
- AEC-Q101
- Short Circuit Current
- 50mA
- Series
- TEMD
- Open Circuit Voltage
- 350mV
- Breakdown Voltage
- 60V
- Polarity
- Forward
