ข้อมูลจำเพาะทางเทคนิค Broadcom HDSM-283C

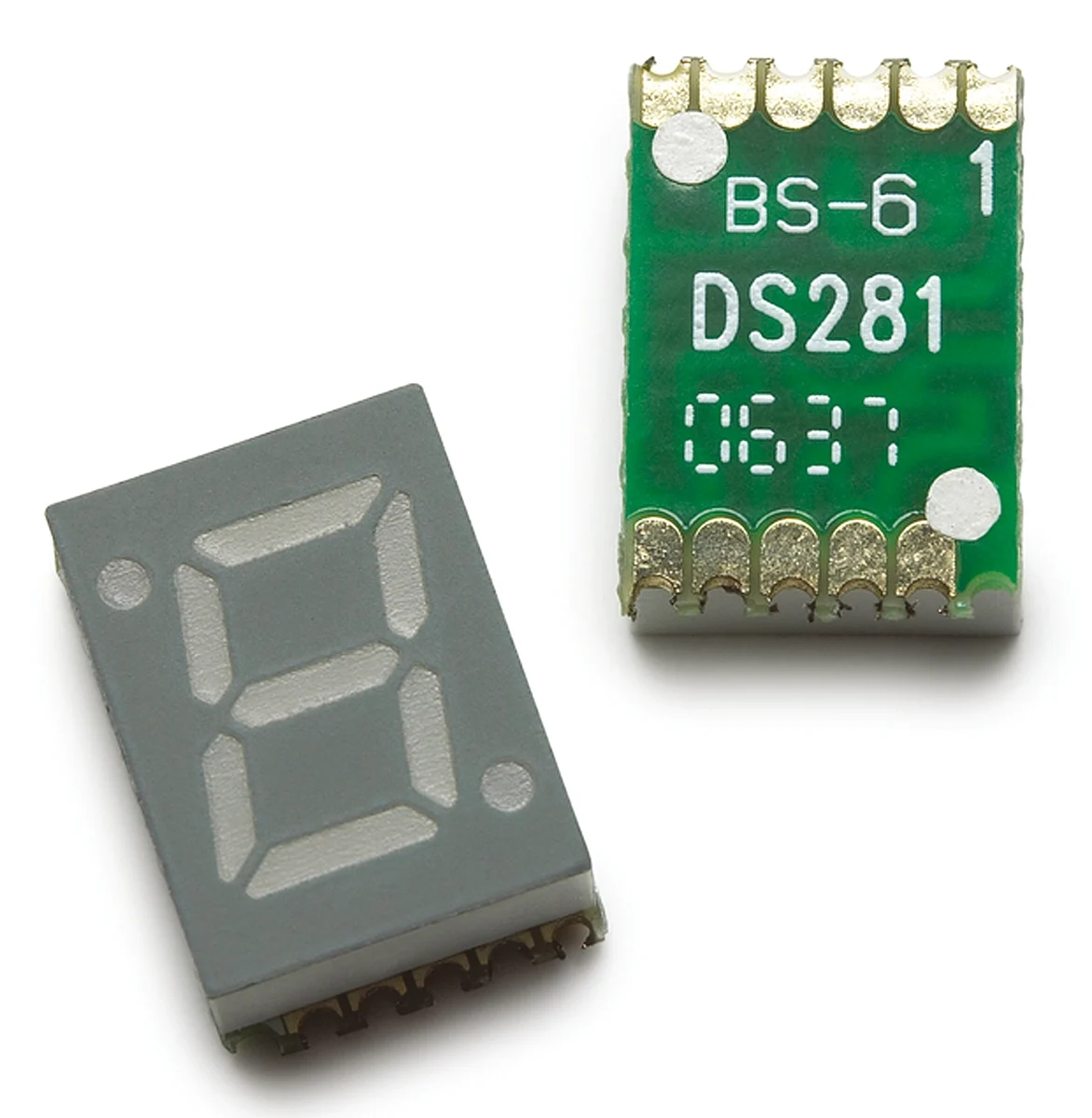

Broadcom HDSM-283C
- Product Type
- LED Display
- Display Type
- 7 Segment
- Number of Characters
- 1
- LED Colour
- Red
- Number of Segments
- 7
- Dominant Wavelength
- 632nm
- Character Width
- 4.6mm
- Character Height
- 7mm
- Common Connection
- Cathode
- Mount Type
- Surface
- External Width
- 7.5mm
- External Height
- 3.8mm
- External Depth
- 10.8mm
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 105°C
- Luminous Intensity
- 7.5mcd
- Standards/Approvals
- RoHS
- Colour of Face
- Grey
- Forward Voltage
- 2V
- Power Dissipation
- 65mW
- Forward Current
- 25mA
- Decimal Orientation
- Right Side
