ข้อมูลจำเพาะทางเทคนิค Kingbright KCDA02-123

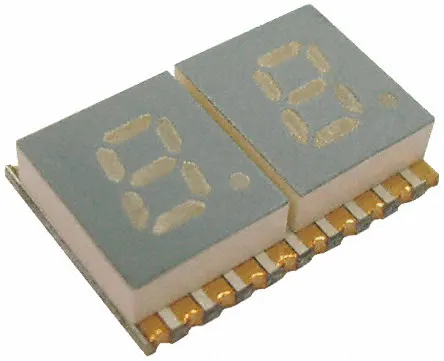

Kingbright KCDA02-123
- Product Type
- LED Display
- Display Type
- 7 Segment
- Number of Characters
- 2
- LED Colour
- Green
- Number of Segments
- 7
- Dominant Wavelength
- 570nm
- Character Width
- 3.2mm
- Character Height
- 5.1mm
- Common Connection
- Anode
- Mount Type
- Surface
- External Height
- 3mm
- External Width
- 14.1mm
- External Depth
- 10mm
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Luminous Intensity
- 12mcd
- Colour of Face
- Grey
- Standards/Approvals
- RoHS
- Forward Voltage
- 2.1V
- Power Dissipation
- 75mW
- Forward Current
- 30mA
- Series
- KCDA02
- Decimal Orientation
- Right Side
