ข้อมูลจำเพาะทางเทคนิค Kingbright KCDC56-105

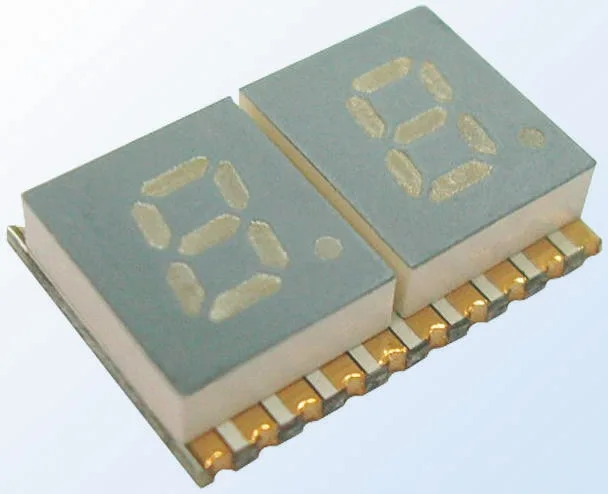

Kingbright KCDC56-105
- Product Type
- LED Display
- Display Type
- 7 Segment
- Number of Characters
- 2
- LED Colour
- Red
- Number of Segments
- 7
- Dominant Wavelength
- 635nm
- Character Width
- 8mm
- Character Height
- 14.2mm
- Common Connection
- Cathode
- Mount Type
- Surface
- External Depth
- 3.8mm
- External Height
- 19mm
- External Width
- 25.1mm
- Minimum Operating Temperature
- -40°C
- Maximum Operating Temperature
- 85°C
- Luminous Intensity
- 44mcd
- Standards/Approvals
- RoHS
- Colour of Face
- Grey
- Power Dissipation
- 75mW
- Forward Voltage
- 2V
- Forward Current
- 30mA
- Decimal Orientation
- Right Side
